Bio-Pharmaceutical Fittings
Quickly draw elbows, tees, two to four way valves and more with clamped ends that match up automatically.
Part of SpoolFab 10
The majority of the MaxPure catalogue is supported
MaxPure Fittings
High quality ASME BPE compliant Bio-Pharmaceutical fittings

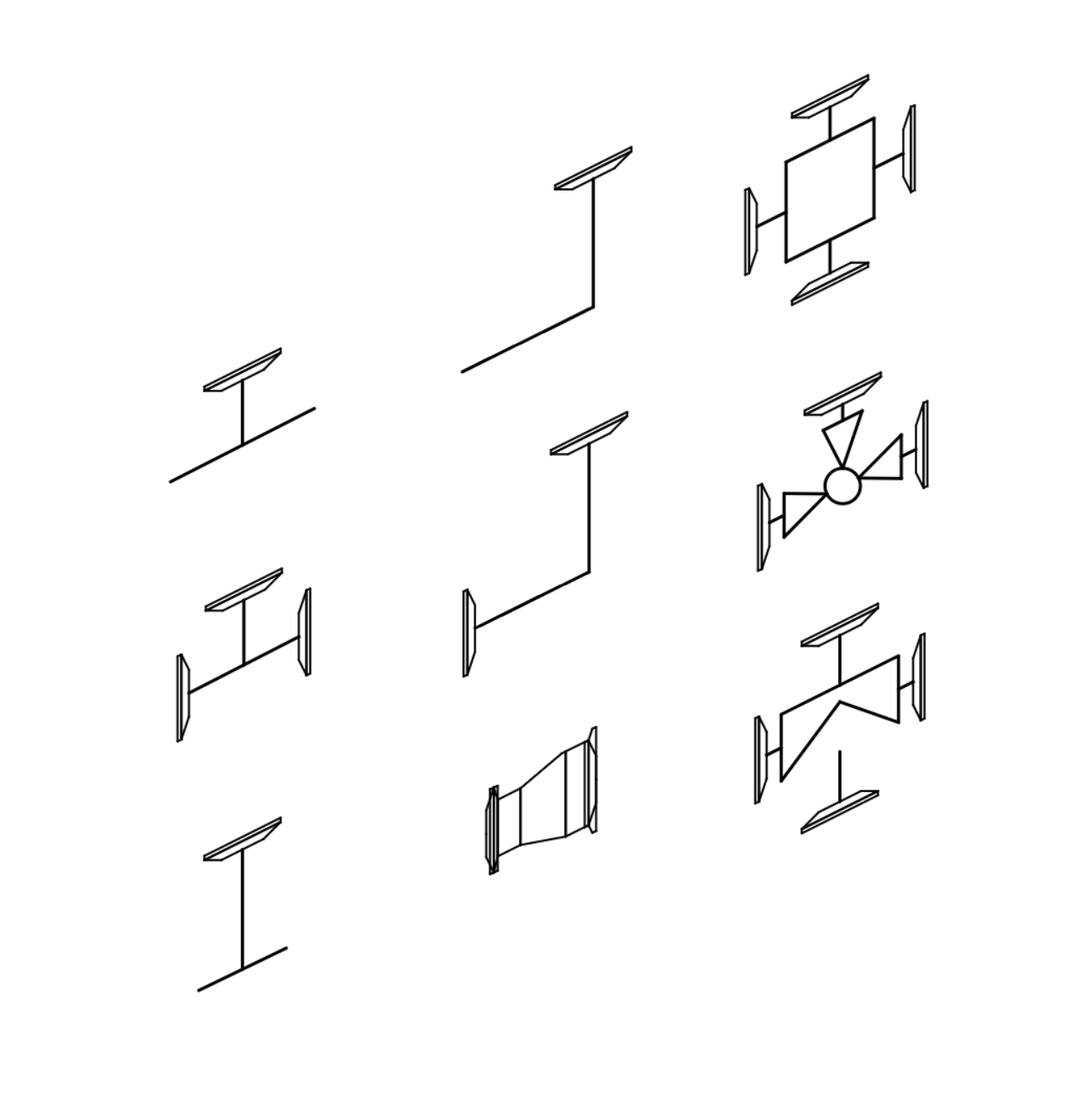

Draw a Variety of BPE Fittings and Manage Inventory
SpoolFab 10 provides the tools needed to efficiently draw and manage a project using bioprocessing equipment (BPE) fittings.
BPE Elbows with clamped ends
Draw elbows with zero, one or both ends being clamped.
BPE Tees with clamped ends (3 or 4 way)
Draw 3 or 4 way tees with any of the ends being clamped.
BPE Reducers with clamped ends
Draw reducers with zero, one or both ends being clamped. Instrument tees are supported.
BPE Valves with clamped ends (3 or 4 way)
Draw 3 or 4 way valves with any of the ends being clamped. Custom images for: Ball, Box, Gate, Globe, Trap, Filter and Diaphragm Valves.
Add clamps easily even after a drawing is complete
Add clamps on to all the existing clamped connections on a drawing at once. Now there's no need to draw clamps as you go since you can add, change and remove them later on.
Use MaxPure clamps or add others
SpoolFab comes pre-loaded with the MaxPure clamp catalogue.
Have multiple clamp types on a single drawing
You are not restricted to having one type of clamp per drawing.
